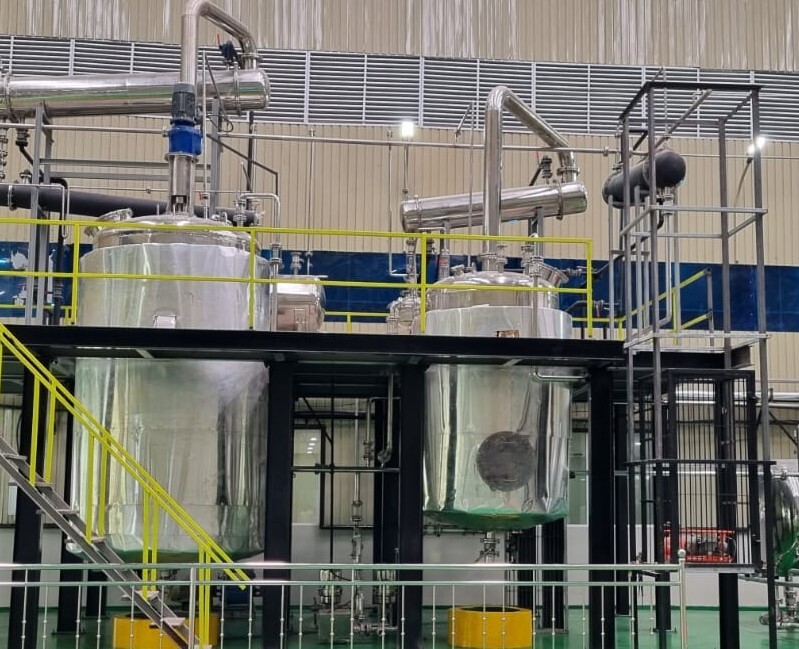

Boswellia(AKBA) (10-90%Extraction Plant

Name: Boswellia(AKBA) (10-90%Extraction Plant
Brand: Mech O Tech LLP
Price: 10000000 INR
Availability: InStock

10000000 INR/Ton

Get a Price/Quote

Product Details:

Product Type Boswellia (AKBA) Extraction Plant
General Use Extraction of AKBA (Acetyl-11-keto--boswellic acid) from Boswellia
Capacity Variable, 10-90% extraction rate, custom build sizes available
Material Stainless Steel (Grade SS304/SS316), Stainless Steel (SS304/SS316)
Type Automatic Extraction Machinery, Automatic Herbal Extraction Equipment
Weight (kg) Depends on capacity (Approx. 800-2500 kg)
Computerized Yes, Yes (optional PLC based)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Boswellia(AKBA) (10-90%Extraction Plant Price And Quantity

Minimum Order Quantity 1 Piece
Price 10000000 INR/Ton

Boswellia(AKBA) (10-90%Extraction Plant Product Specifications

Capacity Variable, 10-90% extraction rate, custom build sizes available
Computerized Yes, Yes (optional PLC based)
Color Metallic Silver
Motor Heavy-duty Industrial Electric Motor (custom specifications), Heavy duty industrial grade, 7.5 kW to 25 kW based on plant size
Automatic Yes, Fully automatic and semi-automatic options available
Voltage 220V/380V/415V - 50Hz or as required
General Use Extraction of AKBA (Acetyl-11-keto--boswellic acid) from Boswellia
Material Stainless Steel (Grade SS304/SS316), Stainless Steel (SS304/SS316)
Feature High extraction efficiency, CIP (Clean-in-place), energy-efficient, GMP compliant, Solvent recovery, high extraction yield, CIP (Clean-in-place) system, GMP compliant
Weight (kg) Depends on capacity (Approx. 800-2500 kg)
Type Automatic Extraction Machinery, Automatic Herbal Extraction Equipment
Product Type Boswellia (AKBA) Extraction Plant
Control System PLC (Programmable Logic Controller), PLC/HMI based touch panel with manual override
Dimension (L*W*H) Customizable; Standard: 3.2 x 1.5 x 2.5 m

Automation Level Critical process automation with recipe management
Applicable Solvents Water, Ethanol, Hydro-alcoholic mixtures
Cooling System Shell & tube/chiller based cooling system
Residue Handling Integrated residue discharge system
Pressure Range Atmospheric to 3 bar
Extraction Time 2 to 8 hours per batch (process dependent)
Usage/Application Pharmaceuticals, Ayurveda, Nutraceuticals, Cosmetics industry
Safety Features Pressure relief valves, explosion-proof motors, emergency shutdown system
Compliance GMP, CE, ISO 9001 certified
Installation Turnkey installation service provided
Temperature Range Ambient to 120C
Extraction Range Boswellia (AKBA) 10% to 90% purity
Power Consumption 25-50 kW (depending on plant size)
Heating System Steam jacketed/thermal oil heating

Product Description

Mechotech LLP offers a highefficiency Boswellia Serrata Extraction Plant designed for the production of highquality standardized extracts with 20 25 30 35 45 50 and 60 Boswellic Acids by HPLC This advanced system efficiently processes Boswellia resin to extract and concentrate bioactive compounds while preserving their natural therapeutic properties

The plant utilizes advanced solvent extraction followed by filtration concentration and purification techniques to achieve precise standardization and consistent extract quality It is ideal for pharmaceutical nutraceutical and Ayurvedic applications requiring highpurity Boswellic acid content

Engineered with a hygienic closedloop and corrosionresistant design the system ensures safe ecofriendly and contaminationfree processing Its modular configuration allows scalability from pilotscale to full industrial production

Key Features

Standardized extraction of Boswellic Acids 20 to 60 by HPLC

Highefficiency processing of Boswellia Serrata resin

Advanced multistage extraction and purification system

Accurate standardization with excellent batchtobatch consistency

Hygienic closedloop processing system

Energyefficient solvent recovery system

Customizable capacity and automation options

Applications

Pharmaceutical extract manufacturing

Nutraceutical and dietary supplement industry

Ayurvedic and herbal formulations

Antiinflammatory and joint health product manufacturing

Technical Specifications

Material of Construction SS304 SS316

Extraction Method Solvent Extraction Purification Standardization

Raw Material Boswellia Serrata Resin

Active Compounds Boswellic Acids 2060 by HPLC

Capacity As per client requirement

Automation SemiAutomatic Fully Automatic

Why Choose Mechotech LLP

Expertise in standardized herbal extraction plant engineering

Highperformance and durable industrial systems

Precise control over extract standardization HPLCbased

Complete turnkey solutions including design installation and support

Competitive pricing with customized solutions
