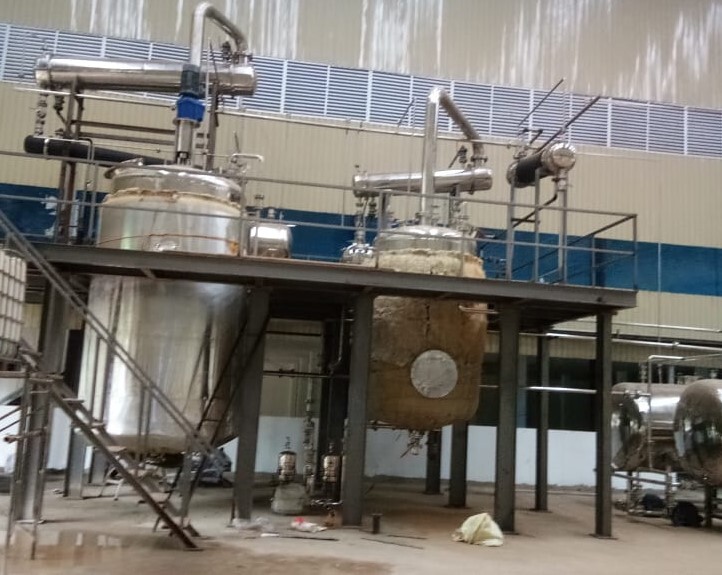

Kewda (concrete / absolute / wax) extraction plant

Name: Kewda (concrete / absolute / wax) extraction plant
Brand: Mech O Tech LLP
Price: 9500000 INR
Availability: InStock

9500000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Kewda Concrete / Absolute / Wax Extraction Plant
General Use Extraction of essential oils from kewda flowers using solvent extraction method
Capacity 100 kg/batch to 500 kg/batch (customizable range available)
Material Stainless Steel (SS 304/316)
Type Automatic Solvent Extraction Unit
Weight (kg) 1200 to 3500 kg (depending on capacity)
Computerized Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Kewda (concrete / absolute / wax) extraction plant Price And Quantity

Price 9500000 INR/Piece
Minimum Order Quantity 1 Piece

Kewda (concrete / absolute / wax) extraction plant Product Specifications

Type Automatic Solvent Extraction Unit
Product Type Kewda Concrete / Absolute / Wax Extraction Plant
Computerized Yes
General Use Extraction of essential oils from kewda flowers using solvent extraction method
Color Silver/Metallic Finish
Motor Electrical motor, 5 HP to 15 HP depending on model
Capacity 100 kg/batch to 500 kg/batch (customizable range available)
Feature Efficient Solvent Recovery, High Yield, Low Residue
Automatic Yes
Dimension (L*W*H) 5500 mm x 1800 mm x 2200 mm (approx., varies by capacity)
Material Stainless Steel (SS 304/316)
Voltage 415 V, 3 Phase, 50 Hz
Weight (kg) 1200 to 3500 kg (depending on capacity)
Control System PLC based automated controls

Discharge System Manual and Automatic Discharge Options
Distillation System Integrated Solvent Recovery and Re-condensing Unit
Batch or Continuous Batch Type
Compliance GMP, ISO 9001:2015 certified manufacturing standards
Heating System Steam or Electrical Heating (customizable)
Installation Type On-site Assembly Required
Agitator Type Mounted Stainless Steel Agitator
Operating Temperature Range Ambient to 80C
Processing Time 2-4 hours per batch, depending on input material
Safety Feature Explosion-proof electrical fittings and automatic pressure release
Application Production of Kewda essential oils, waxes and absolutes for perfumery, cosmetics, and aromatherapy
Extraction Method Solvent Extraction (Hexane or Food-grade Solvents)

Kewda (concrete / absolute / wax) extraction plant Trade Information

Delivery Time 5-10 Days

Product Description

Mechotech LLP offers a high-performance Kewda Extraction Plant designed for the production of premium-quality concrete, absolute, and floral wax from Pandanus odorifer flowers (Kewda). Engineered with advanced low-temperature solvent extraction and purification technology, the plant ensures maximum recovery of delicate aromatic compounds while preserving the unique sweet, fruity, and intensely floral fragrance of kewda.

This system is widely used in the perfumery, cosmetic, aromatherapy, and food flavoring industries for producing high-value kewda extracts used in luxury fragrances and traditional formulations.

Key Features:

High-efficiency extraction for delicate kewda flowers
Advanced solvent extraction system for concrete production
Precision purification system for absolute conversion
Stainless steel (SS304/SS316) hygienic construction
Low-temperature processing to preserve volatile aroma compounds
Integrated solvent recovery system for cost efficiency
Energy-efficient design with optimized operational cost
Semi-automatic / fully automatic process control options
Customizable capacity as per production requirements

Applications:

Perfumery and fine fragrance industry
Cosmetic and skincare formulations
Aromatherapy and wellness products
Food flavoring industry (kewra water/essence support systems)
High-end floral extract manufacturing

Technical Specifications:

Capacity: Custom-built (pilot scale to industrial scale)
Material of Construction: SS304 / SS316 / Glass-lined reactors (as required)
Process Type: Solvent extraction + filtration + concentration + purification
Automation Grade: Semi-Automatic / Fully Automatic
Solvent Recovery: Integrated system included

Why Choose Mechotech LLP:

Expertise in delicate floral extraction systems
Turnkey solutions from design to commissioning
Precision engineering for fragile aroma retention
Robust industrial-grade construction
Strong after-sales service and technical support

Advanced Extraction Technology

Our solvent extraction plant integrates state-of-the-art features like an automated PLC control system, explosion-proof electrical fittings, and efficient solvent recovery to deliver optimum yield with minimal residue. Designed for batch processing, it operates within an ambient to 80C temperature range, supporting both steam and electric heating for flexibility.

Superior Product Quality and Yield

Combining a stainless steel agitator and customizable discharge systems, each batch is processed for 2-4 hours, based on input material, to maximize extraction quality and output. The integrated distillation and solvent recovery unit ensures high purity kewda oils, waxes, and absolutes, making them suitable for perfumery, aromatherapy, and cosmetic applications.

Compliance and Customization

Manufactured as per GMP and ISO 9001:2015 standards, these extraction units are available in various capacities, ranging from 100 kg to 500 kg per batch, and can be tailored for specific operational requirements. On-site assembly is provided, ensuring seamless installation and commissioning to suit exporter, importer, and manufacturer needs.

FAQ's of Kewda (concrete / absolute / wax) extraction plant:

Q: How does the Kewda extraction plant operate?

A: The plant uses a batch-type solvent extraction process, where kewda flowers are processed with food-grade or hexane solvents at controlled temperatures (ambient to 80C) in a stainless steel vessel. An integrated distillation and solvent recovery system ensures efficient extraction and separation of essential oils, waxes, and absolutes.

Q: What is the typical processing time for each batch?

A: Depending on the quality and nature of input kewda flowers, the extraction cycle ranges from 2 to 4 hours per batch, ensuring thorough processing and optimal yield of essential oils and other extracts.

Q: When should I use this extraction plant?

A: This plant is suitable for producers of perfumery, cosmetics, or aromatherapy products requiring high-purity kewda essential oils and related extracts. It is ideal when you need efficient, large-scale, GMP- and ISO-compliant batch processing.

Q: Where can the extraction plant be installed?

A: The unit is designed for on-site assembly and must be installed at your designated production location. Its modular design and customizable options make it adaptable for exporter, importer, and manufacturing sites, both in India and internationally.

Q: What are the benefits of integrated solvent recovery and re-condensing?

A: Integrated solvent recovery improves process efficiency by recapturing solvents for reuse, reducing overall solvent costs and minimizing environmental impact. The re-condensing unit ensures higher extraction purity and safety.

Q: How is operator safety ensured during extraction?

A: Operator safety is enhanced through explosion-proof electrical fittings and an automatic pressure release system. Additionally, the stainless steel construction and PLC-based controls provide robust safety and easy monitoring throughout the extraction process.

Q: What materials and capacity options are available?

A: The plant is fabricated from high-grade stainless steel (SS 304 or 316) and comes in customizable capacities ranging from 100 kg to 500 kg per batch, catering to small and large-scale production requirements.
