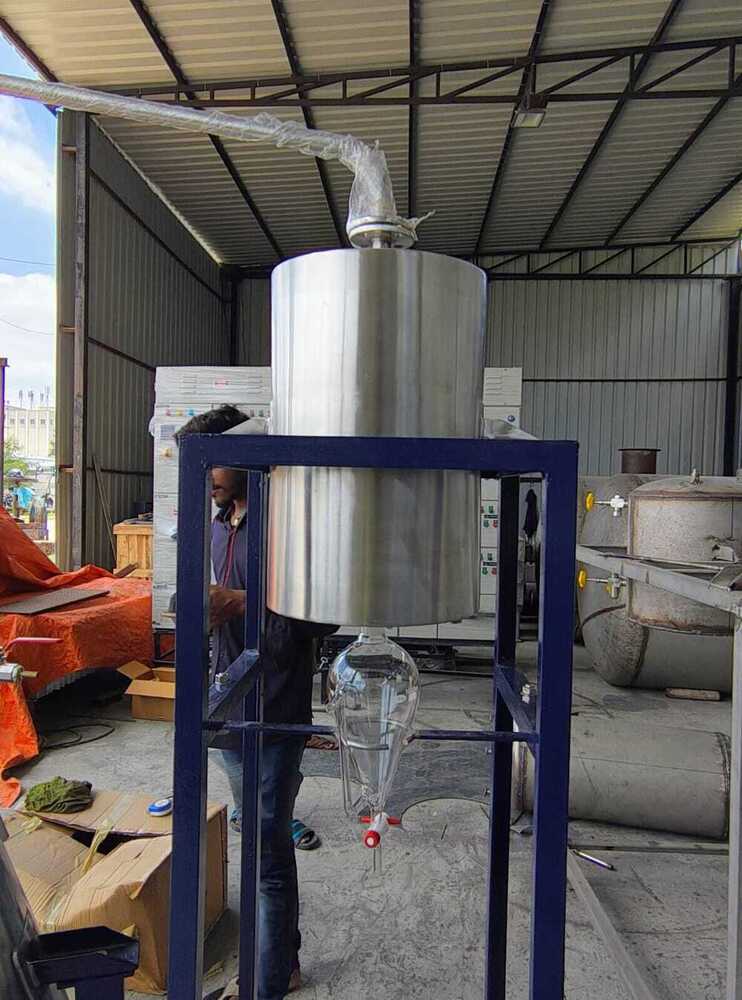

Orange Oil Distillation Plant

100000 INR/Ton

Get a Price/Quote

Product Details:

Product Type Orange Oil Distillation Plant
General Use Essential oil extraction from orange peel and citrus fruits
Capacity 500-1500 kg per batch (customizable)
Material Stainless Steel (SS304/SS316)
Type Industrial Distillation Equipment
Weight (kg) Approx. 2500-4000 kg (depends on plant size)
Computerized No
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Orange Oil Distillation Plant Price And Quantity

Price 100000 INR/Ton
Minimum Order Quantity 1 Piece

Orange Oil Distillation Plant Product Specifications

Type Industrial Distillation Equipment
Feature High yield extraction, corrosion resistant, heavy duty, low maintenance
Automatic Semi-Automatic / Fully Automatic (as per model)
Product Type Orange Oil Distillation Plant
Voltage 220-440 V, 50/60 Hz, 3 Phase
Motor 3-7.5 HP (as per plant capacity)
Color Silver
Dimension (L*W*H) 6500*2500*3600 mm (customizable)
Material Stainless Steel (SS304/SS316)
Capacity 500-1500 kg per batch (customizable)
Control System PLC / Manual
General Use Essential oil extraction from orange peel and citrus fruits
Weight (kg) Approx. 2500-4000 kg (depends on plant size)
Computerized No

Safety Features Overpressure Relief Valve, Emergency Stop System
Distillation Method Steam Distillation
Operation Temperature 98-105C
Floor Space Requirement 20-30 sq.m (varying by plant size)
Condenser Type Shell and Tube / Spiral
Residue Discharge Manual/Automatic
Installation On-Site Commissioning Available
Working Pressure Atmospheric/Low Pressure
Application Extraction of orange essential oil, citrus peel oil, food and aroma industries
Output Oil Quality Food Grade, High Purity
Maintenance Access Easy Access Panels/Doors for Cleaning
Noise Level Less than 70 dB
Heating Source Steam Boiler, Electric Heater

Product Description

Mechotech LLP offers a high-performance Orange Oil Distillation Plant designed for efficient extraction of premium-quality essential oil from orange peels. Engineered with advanced steam distillation technology, the plant ensures maximum oil yield while preserving the natural sweet citrus aroma, freshness, and high limonene content of orange oil.

This system is widely used in the essential oil, fragrance, cosmetic, pharmaceutical, food flavoring, and aromatherapy industries for producing high-purity orange oil suitable for domestic and export markets.

Key Features:

High oil recovery with excellent citrus aroma retention
Advanced steam distillation system for efficient extraction
Stainless steel (SS304/SS316) hygienic construction
Uniform steam distribution for maximum efficiency
Energy-efficient design with low steam and operational cost
Easy operation with minimal maintenance requirements
Available in manual, semi-automatic, and fully automatic configurations
Customizable plant capacity as per production requirements

Applications:

Essential oil production (orange oil)
Perfume and fragrance industry
Cosmetic and personal care formulations
Food and beverage flavoring industry
Aromatherapy and wellness applications

Technical Specifications:

Capacity: 100 kg/batch to 5000 kg/batch (customizable)
Material of Construction: SS304 / SS316
Distillation Method: Steam Distillation / Cold Press (optional)
Heating Source: Steam boiler system
Automation Grade: Manual / Semi-Automatic / Fully Automatic

Why Choose Mechotech LLP:

Expertise in citrus essential oil distillation systems
Turnkey solutions from design to commissioning
Robust industrial-grade construction with long service life
Compliance with international quality standards
Strong after-sales service and technical support

Advanced Steam Distillation Technology

This plant employs state-of-the-art steam distillation, making it highly suitable for extracting essential oils from orange peels and various citrus fruits. The process ensures that the natural compounds remain intact, delivering oils of superior purity for use in the food and aroma industries. Flexibility in heating sources lets you choose between a steam boiler and an electric heater, according to your operational needs.

Flexible and Robust Design for Industrial Demand

Constructed from high-grade stainless steel (SS304/SS316), the distillation plant boasts corrosion resistance and a heavy-duty build. With customizable capacities and dimensions, it meets the rigorous requirements of exporters, importers, manufacturers, and service providers alike. The design allows easy cleaning, low maintenance, and safe operation, supported by overpressure relief valves and emergency stop systems.

Efficient Oil Extraction and User-Friendly Operation

Engineered for high-yield extraction, the plant delivers food-grade, high-purity orange and citrus oils with minimal noise (less than 70 dB). Manual or automatic residue discharge and options for semi-automatic or fully automatic operation ensure adaptability to various industry needs. On-site commissioning and support guarantee smooth installation and integration into existing workflows.

FAQ's of Orange Oil Distillation Plant:

Q: How does the Orange Oil Distillation Plant extract essential oil from citrus peels?

A: The plant uses steam distillation, where heated steam (generated by a steam boiler or electric heater) passes through crushed orange or citrus peels, volatilizing the essential oils. These vapors are then condensed in a shell and tube or spiral condenser to separate the oil from the water, resulting in food-grade, high-purity citrus oil.

Q: What are the safety features included in the distillation plant?

A: Safety is ensured by integrated features such as an overpressure relief valve, emergency stop system, and easy-access panels for routine maintenance and cleaning. These measures provide protection for operators and minimize the risk of accidents during operation.

Q: When should I choose between manual and automatic residue discharge?

A: Manual residue discharge is suitable for smaller batches or lower production volumes where cost-effectiveness is prioritized. Automatic residue discharge is ideal for larger-scale operations, improving processing efficiency and reducing manual labor.

Q: Where is installation and commissioning support available for this equipment?

A: On-site commissioning and installation support are provided to ensure smooth setup and integration of the plant at your facility, whether you are located in India or internationally. Expert engineers oversee the process and provide operational training as needed.

Q: What is the typical process flow in operating this orange oil extraction plant?

A: Citrus peels are loaded into the stainless steel vessel. Steam is introduced, extracting essential oil vapors, which are then channeled into a condenser to separate oil from water. The residue is discharged either manually or automatically, while the extracted oil is collected, ready for use in food and aroma industries.

Q: How does this plant benefit food and aroma industry businesses?

A: With its high yield extraction capability, production of food-grade, high-purity oil, customizable capacity, and semi/fully automatic options, the plant significantly elevates operational efficiency. The low maintenance, safety features, and streamlined installation deliver long-term cost and performance advantages.

Q: What maintenance access and control system options are provided?

A: Maintenance is simplified thanks to easy-access panels and doors for cleaning and service. Control can be handled via a PLC system for automation, or manually depending on the chosen plant model. This flexibility accommodates varied operational requirements.
