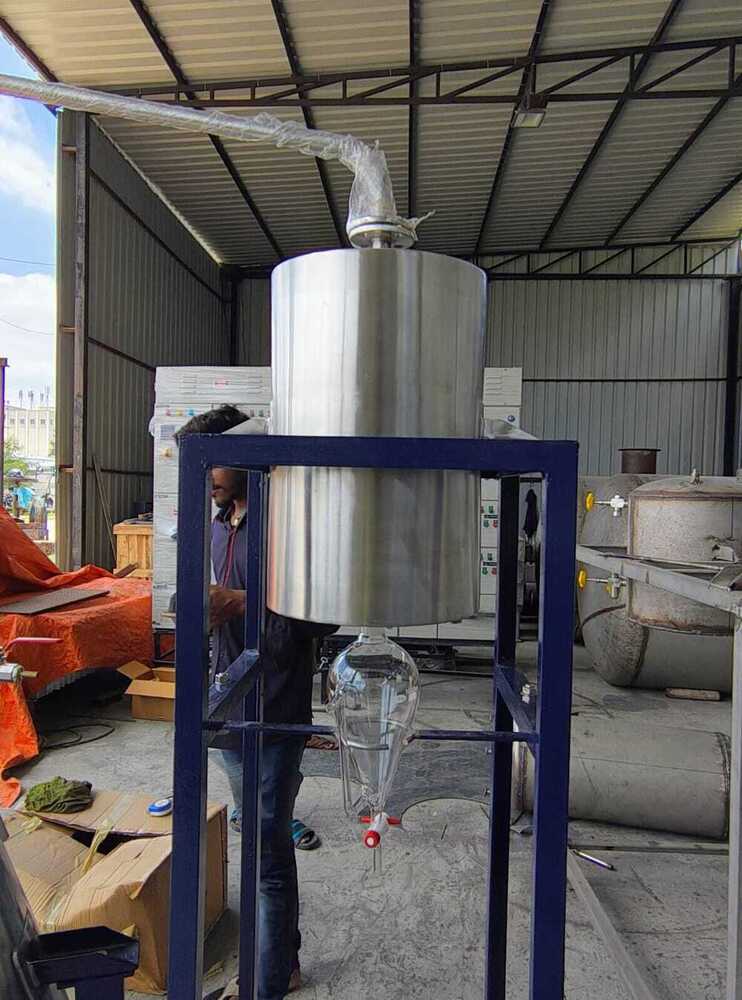

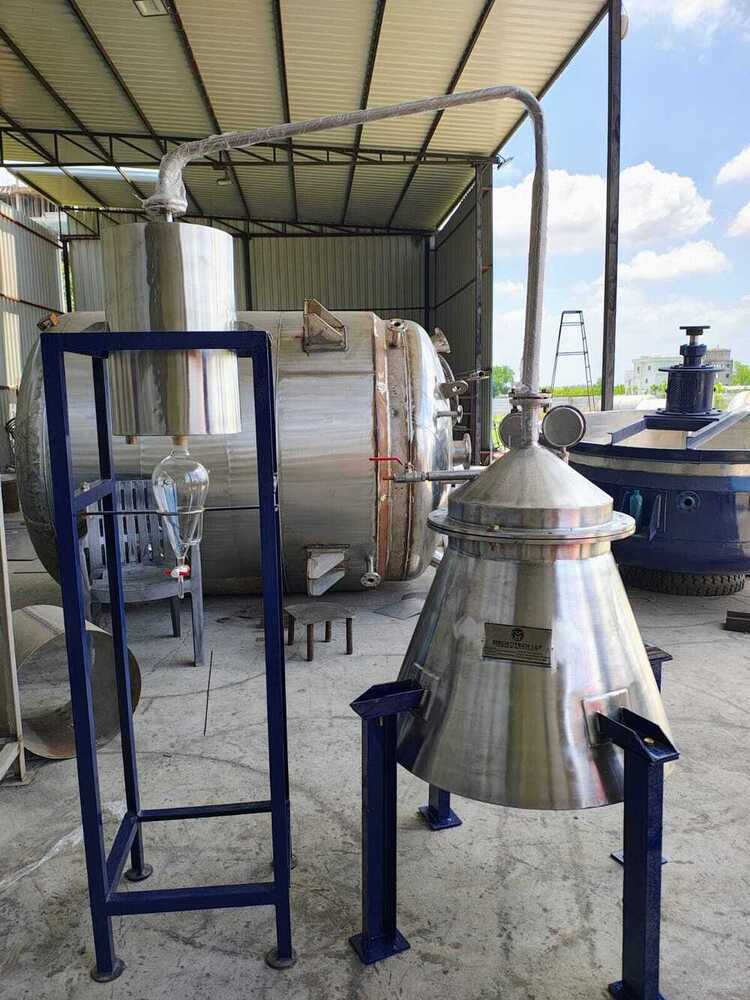

Stainless Steel 1 ton field level distillation plant

Stainless Steel 1 ton field level distillation plant Price And Quantity

• Minimum Order Quantity 1 Piece
• Price 1000000 INR/Ton

Stainless Steel 1 ton field level distillation plant Product Specifications

• Color Metallic Silver
• Weight (kg) Approx. 1800-2000 kg
• Computerized No, No
• Product Type Field Level Distillation Plant
• Voltage 415 V, 3 Phase, 50 Hz
• Type Portable, Field-Deployable, Batch Type
• General Use Essential Oil Extraction and Distillation at Field Level
• Feature Corrosion Resistant, Easy Mobility, Skid-Mounted, Energy Efficient, Corrosion resistance, robust construction, portable design
• Capacity 1 ton per batch
• Automatic Semi-Automatic, Semi-Automatic
• Dimension (L*W*H) 4100 x 1900 x 3000 mm (approx.)
• Control System Manual with Safety Valves and Temperature Gauges, Manual controls
• Material Stainless Steel (SS304/SS316), Stainless Steel
• Motor 3 HP Electric Motor (for Pump/Agitator), 3 HP Electric Motor

• Compliance Meets food and pharmaceutical grade standards
• Oil Separator Material Stainless steel
• Pressure Range Atmospheric to 1.5 bar
• Distillation Chamber Jacketed vessel for uniform heating
• Suitable Raw Materials Herbs, flowers, leaves, and aromatic plants
• Condensation Type Shell and tube condenser
• Plant Mobility Mounted on trailer for field transport
• Safety Pressure relief valve and safety interlock
• Maintenance Easy to clean, low maintenance design
• Water Requirement Approx. 3000 liters per batch
• Operation Temperature Up to 120C
• Heating System Direct steam or boiler heated
• Usage Areas Agricultural fields, remote locations, essential oil processing units
