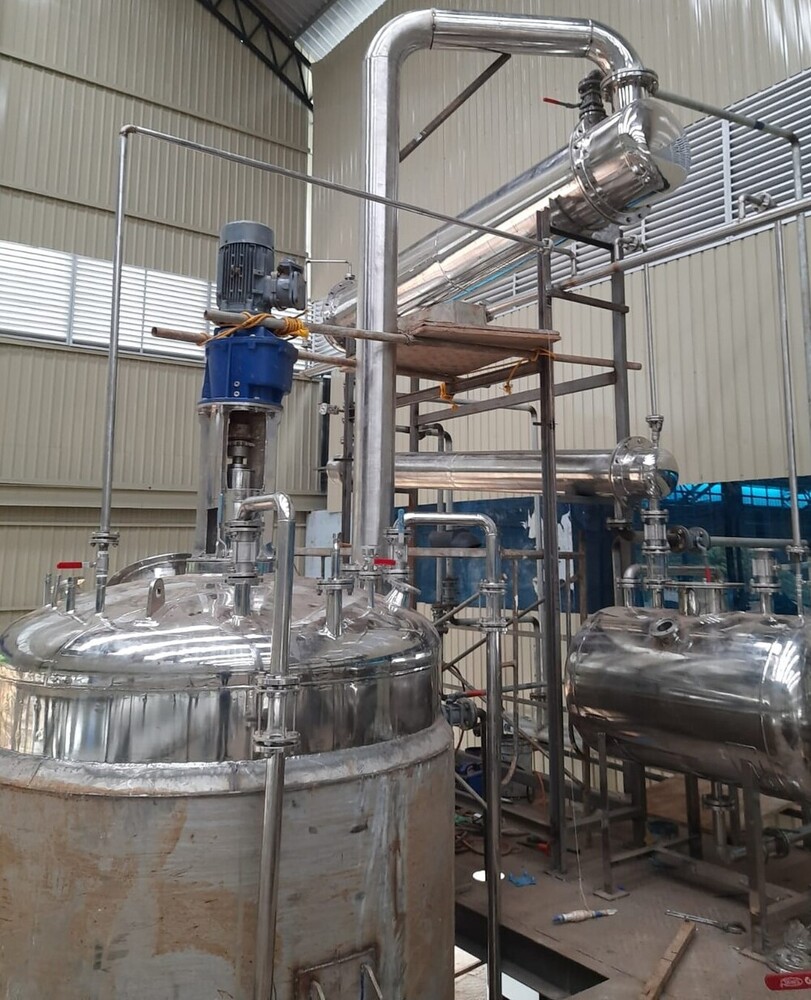

Flower & Buds Oils Distillation Plants for Arnica (Flower)

Name: Flower & Buds Oils Distillation Plants for Arnica (Flower)
Brand: Mech O Tech LLP
Price: 150000 INR
Availability: InStock

150000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Flower & Buds Oils Distillation Plant
General Use Extraction of essential oil from Arnica flowers
Capacity 200-1000 kg per batch (customizable)
Material Stainless Steel (SS 304/316)
Type Steam Distillation Unit
Weight (kg) 1500-3200 kg (varies with model)
Computerized Yes/No (Optional)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Flower & Buds Oils Distillation Plants for Arnica (Flower) Price And Quantity

Minimum Order Quantity 1 Piece
Price 150000 INR/Piece

Flower & Buds Oils Distillation Plants for Arnica (Flower) Product Specifications

Motor 3 - 7.5 HP Electric Motor
General Use Extraction of essential oil from Arnica flowers
Product Type Flower & Buds Oils Distillation Plant
Computerized Yes/No (Optional)
Feature Corrosion proof, Robust construction, Energy efficient, High yield
Material Stainless Steel (SS 304/316)
Type Steam Distillation Unit
Control System PLC Based / Manual
Automatic Semi-Automatic / Automatic
Voltage 380V/415V, 50/60Hz (customized variants available)
Weight (kg) 1500-3200 kg (varies with model)
Color Steel Grey / Silver
Capacity 200-1000 kg per batch (customizable)
Dimension (L*W*H) Customized as per capacity (example: 6m x 2.5m x 2.8m)

Service Life 10+ Years with Proper Maintenance
Heating Source Wood Fired, Electric, Diesel, or Steam Boiler
Output Pure Arnica Essential Oil & Hydrosol
Application Aromatic & Medicinal Oil Extraction
Cooling System Water Cooled Condenser
Minimum Batch Size 100 kg
Oil Recovery Efficiency Up to 85%
Safety Features Pressure Relief Valves, Overload Protection
Accessories Oil Separator, Condenser, Steam Generator Included
Distillation Time 2-4 hours per batch

Flower & Buds Oils Distillation Plants for Arnica (Flower) Trade Information

Delivery Time 5-10 Days

Product Description

The Arnica Flower Oil Distillation Plant is a precisiondesigned steam distillation system developed to extract highquality essential oils and active compounds from delicate flowers and buds Built with pharmagrade stainless steel and controlled lowpressure steam the plant ensures maximum aroma retention gentle extraction and superior oil purity ideal for cosmetic herbal therapeutic and pharmaceutical applications

Process Flow

Flower Cleaning Charging Basket Steam Distillation Vapour Condensation OilWater Separation Filtration Storage

Key Features

SS304SS316 food pharmagrade construction

Gentle steam distillation for delicate flowers

Uniform steam distribution for higher oil recovery

Highefficiency condenser oil separator

PLCautomatic temperature control

Easy loading quick discharge system

Low energy and water consumption

Batch or semicontinuous models available

Technical Specifications Typical

Parameter Specification

Capacity 501000 kgbatch

Distillation Type Steam Hydrodistillation

Heating Source Steam boiler

Oil Yield As per flower quality

Material SS304 SS316

Operation Semi Fully automatic

Output Essential oil Floral water hydrosol

Major Equipment

Flower washing sorting unit

Distillation vessel with baskets

Steam boiler

Condenser

Florentine oil separator

Oil collection tank

Control panel

Optional dryer cutter

Applications

Herbal oils Skincare creams Pain relief balms Aromatherapy Medicinal extracts Natural cosmetics Wellness products

Efficient Essential Oil Extraction

Designed for extracting high-quality essential oils from Arnica flowers, our distillation plants deliver up to 85% oil recovery. Customizable batch capacities and advanced condenser technology ensure purity and yield for both aromatic and medicinal oil applications.

User-Centric and Safe Operation

With adaptable heating sources-including wood, electric, diesel, or steam-and a PLC-based or manual control system, our units offer flexible operation. Safety is prioritized through pressure relief valves and overload protection, and each plant is constructed to withstand years of regular use with minimal maintenance.

Robust and Energy-Efficient Design

Built from corrosion-proof stainless steel, the plants offer reliable performance and energy efficiency. Their sturdy construction and thoughtful engineering allow continuous, high-volume processing, making them a valuable asset for essential oil suppliers and manufacturers.

FAQ's of Flower & Buds Oils Distillation Plants for Arnica (Flower):

Q: How is Arnica essential oil extracted in these distillation plants?

A: The extraction process uses a steam distillation method, where steam generated by your chosen heating source passes through the Arnica flowers. The vapor carries the essential oils and is condensed in a water-cooled unit. The resulting mixture is separated into pure essential oil and hydrosol using an oil separator.

Q: What batch capacities can your Arnica oil distillation units handle?

A: Our distillation plants support batch sizes from 200 kg up to 1000 kg, customizable to your requirements. Each batch typically takes 2-4 hours to process, allowing you to scale production as needed.

Q: When should periodic maintenance be performed on these units?

A: To ensure optimal performance and a service life of over 10 years, it is recommended to perform regular maintenance checks after every cycle or batch. This includes cleaning the condenser, checking the oil separator, and inspecting safety features such as pressure relief valves and overload protection systems.

Q: Where are these distillation plants suitable for operation?

A: These versatile units are ideal for manufacturing facilities, processing plants, or aromatic oil extraction centers. Thanks to their robust design and customizable controls, they serve well in both small and large-scale production settings across India and globally.

Q: What are the key benefits of using these Arnica distillation plants?

A: Key advantages include high oil recovery efficiency (up to 85%), energy-efficient operation, robust corrosion-proof construction, and customizable features for both manual and automatic processing. Safety mechanisms further ensure reliable and secure operation over many years.

Q: How does the cooling system work during the distillation process?

A: The cooling system uses a water-cooled condenser to transform steam carrying Arnica oil into liquid. This method ensures efficient condensation, preserving oil quality and maximizing recovery.

Q: What accessories are included with the distillation unit?

A: Each plant comes equipped with a steam generator, oil separator, and condenser. These essential accessories streamline the extraction process and support seamless operation from start to finish.
